Termostato digital inalámbrico programable semanal Google Home Wifi HTW-ECB6
Termostato digital inalámbrico programable semanal Google Home Wifi HTW-ECB6 Termostato digital inalámbrico programable semanal Google Home Wifi HTW-ECB6 Termostato digital inalámbrico programable semanal Google Home Wifi HTW-ECB6 Termostato digital inalámbrico programable semanal Google Home Wifi HTW-ECB6 Termostato digital inalámbrico programable semanal Google Home Wifi HTW-ECB6

Termostato digital inalámbrico programable semanal Google Home Wifi HTW-ECB6

Identificación del producto : HTW-ECB6
Etiquetas del producto : centro de control de calefacción
Atributos del producto :

El termostato Wifi de la serie HTW-ECB6 se usa ampliamente en estos entornos, como casas, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc., para mantener una temperatura ambiente ideal. Se puede utilizar en sistemas de calefacción por suelo radiante eléctrico, calefacción por agua o caldera de agua/gas.

Descripción del producto
Product Description



Termostato digital inalámbrico programable semanal Google Home Wifi HTW-ECB6




>> General

El termostato Wifi de la serie HTW-ECB6 se usa ampliamente en estos entornos, como casas, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc., para mantener una temperatura ambiente ideal. Se puede utilizar en sistemas de calefacción por suelo radiante eléctrico, calefacción por agua o caldera de agua/gas.



>> Feature

* 17 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian,Turkey, Hebrew, German, Italian, Japanese, French,Poland, simplified Chinese, traditional Chinese, Holland, Portuguese, Vietnamese, Arabic, Korean)
* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box

* Easily Work with Amazon alexa, Google Assitant, IFTTT.

* Group Control in 1 App
* Fashion Sense of Science and Technology

>> Ordering Guide

HTW-ECB6- **
Smart Wifi Thermostat

Code
Application

-3A
Water Heating, 3A, NC+NO+Com output terminals

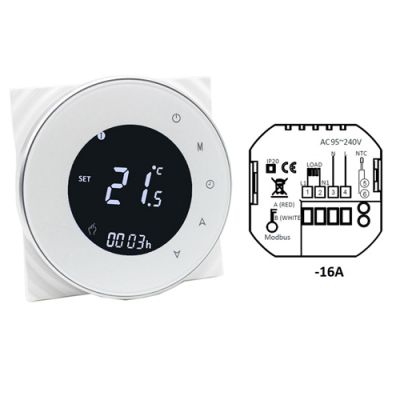

-16A
Electric Underfloor Heating, 16A, L+N line voltage output terminals

-NV
Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-ECB6-3A refers to application:Water Heating, 3A, NC+NO+Com output terminals

>> Specifications

Power Supply
95~240Vac, 50/60Hz
Sensor
NTC3950, 10K

Current Load
3A(-3A, -NV application)
Temperature Accuracy
±0.5°C or ±1℉
16A(-16A application)
Set-Point Range
5~35°C
Storage Temp.
-5 ~ 45 °C
Display Temp. Range
5 ~ 99°C
Power Consumption
< 1.5W
Timing Error
< 1%
Housing Material
PC +ABS ( Fireproof)
Installation Box
EU or Standard Electric Box
Wires on Terminals
Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class
IP20
Operating Buttons
Capacitive Touch Buttons

>>  Dimensions and Display

>> Installation

  • Make sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can't get the system to turn ON in 5 minutes, you'll know the power is OFF.
    * Take off the installation faceplate by grasping and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
    *  Fix the installation plate onto the electric junction box with screws packed in the box.
    * Fasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)
