Termostato dividido de control sin ruido del sistema de ocupación hotelera
Termostato dividido de control sin ruido del sistema de ocupación hotelera Termostato dividido de control sin ruido del sistema de ocupación hotelera Termostato dividido de control sin ruido del sistema de ocupación hotelera Termostato dividido de control sin ruido del sistema de ocupación hotelera Termostato dividido de control sin ruido del sistema de ocupación hotelera

Termostato dividido de control sin ruido del sistema de ocupación hotelera

Identificación del producto : HTW-61-EW001-B
Etiquetas del producto : Sistema de ocupación hotelera
Atributos del producto :

HTW-61-EW001-B es un controlador climático de habitación de hotel sin ruido con termostato dividido de pantalla táctil para instalaciones de agua con bobinas de ventilador. Está diseñado como un dispositivo independiente para operar unidades de bobina de ventilador en áreas e incluye un conjunto de funciones para ocupación de áreas y control climático basado en la posición de la ventana.

Descripción del producto
Product Description

>> General

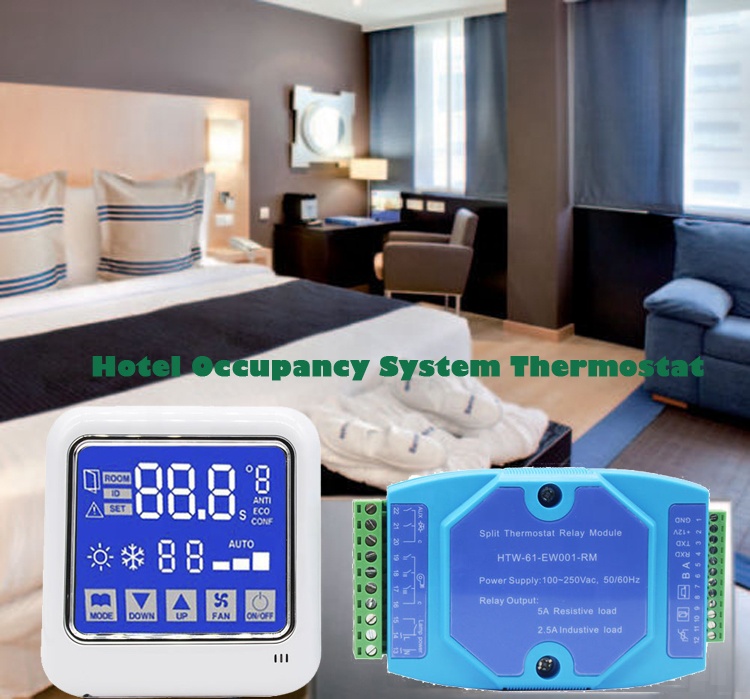

Noise-Free Hotel Room FCU Lighting Touch Screen Split Controller Thermostat consists of 2 parts:
HTW-61-EW001-B control panel dispalay part
HTW-61-EW001-RM relay module part
These 2 parts conected with 4-pin data wire max. up to 30m, which makes it possible to install the relay module part to a remote place apart from the room, for a noise-free purpose.
HTW-61-EW001-B is a Touch Screen Split Thermostat Noise-Free Hotel Room Climate Controller application for water installations with fan coils. It is designed as a stand-alone device to operate the fan coil unit of a zone and includes a set of functions for zone occupancy and window position based climate control.
A high level of comfort and appropriate climate control to ensure maximum energy savings are thus provided.
The device is a compact unit that includes a large backlit display screen, a built in temperature sensor, pushbuttons on the front panel, and inputs and outputs built on split remote relay module for room control.
This Split Thermostat Climate Controller includes two parts:
HTW-61-EW001-B
HTW-61-EW001-RM

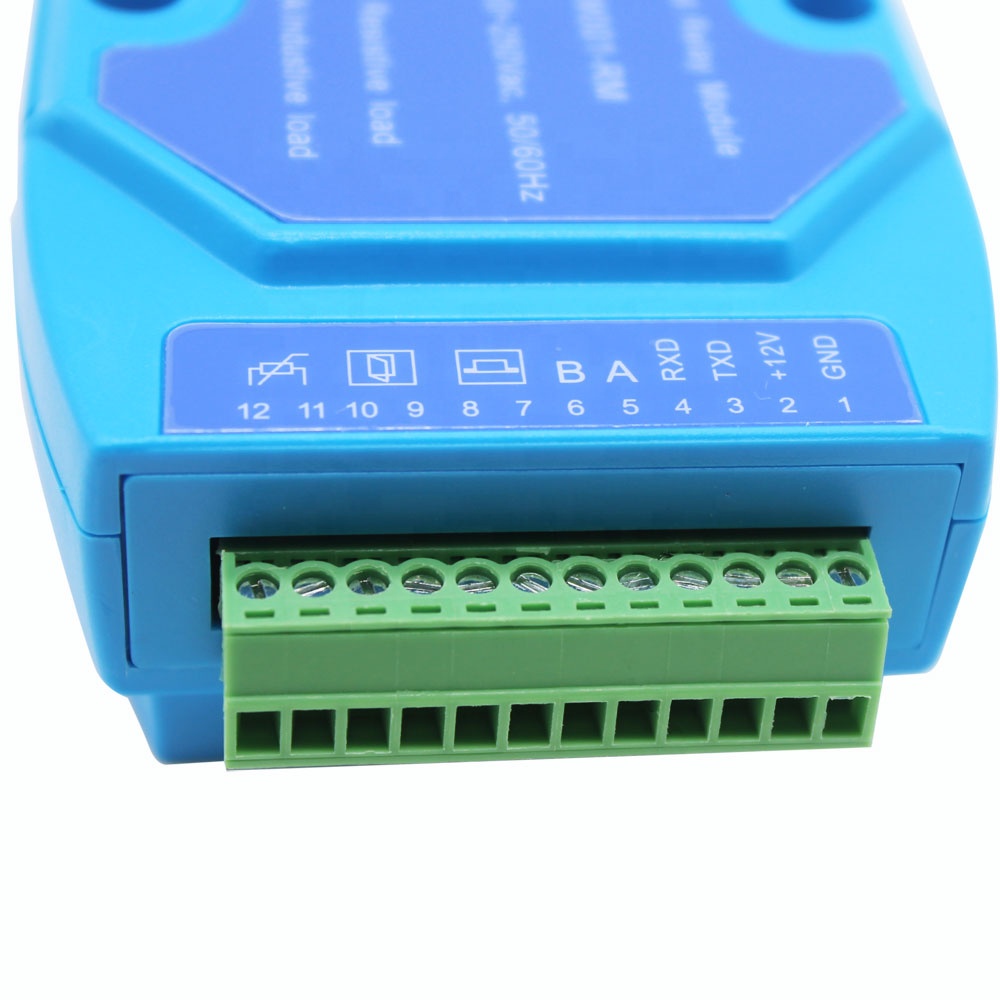

These two parts are communicated via 4-wire connections:
-GND
-12V
-TXD
-RXD
It provides a totally Noise-Free application due to its remoted relay module.



>> Feature

-Touch Screen Display
-60mm Standard Installation Hole Distance
- Wide, blue backlit LCD, 65 × 59 (mm)
- Front panel built in pushbuttons: +T/-T/Fan speed/On-Off
- Front panel built in temperature sensor
- Change Over-HEAT/COOL
- Configurable for 2 pipe / 4 pipe systems
- Selectable temperature units (ºC/ºF)
- Configurable max/min/economy temperature setpoints
- Keycard switch contact occupancy monitoring for energy saving
- Configurable keycard switch input: keycard switch/lighting
- Configurable fan coil: 3 speeds / 1 speed
- Speed 1 configurable as blocked or unblocked on zero demand
- Economy mode Heat/Cool temperature setpoint Heat/Cool dead band
- Delayed switching to Economy when card is removed
- Automatic device startup after loss of power
- Configurable NO/NC valve outputs
- Connfigurable anti-humidity frequency:10/30,5/30,5/60
- Noise-Free application

Device Inputs
Device Outputs
1 Digital, keycard switch contact / lighting auxiliary contact
3 Relays, fan coil speed (I,II,III)
1 Digital, window contact
1 Relay, chilled water valve
1 Analog, ambient temperature external sensor
1 Auxiliary relay (hot water valve on 4 pipe systems / lighting on 2 pipe systems)
1 Temperature sensor, built in on device front panel
1 Auxiliary relay for lamp

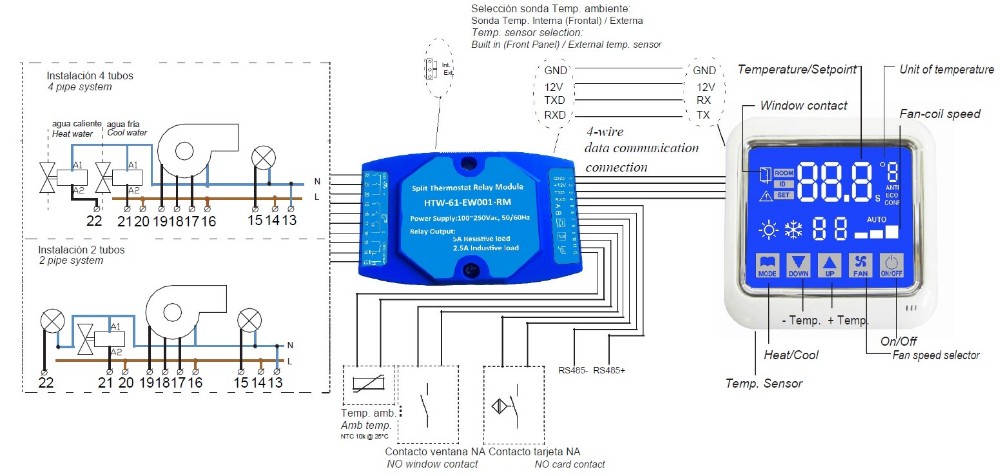

>>Wiring Diagram

If a magnetic window contact switch is connected to the terminals 12-13, when the contact is open, the output S1 will disconnect after 1min, until closing window contact again.

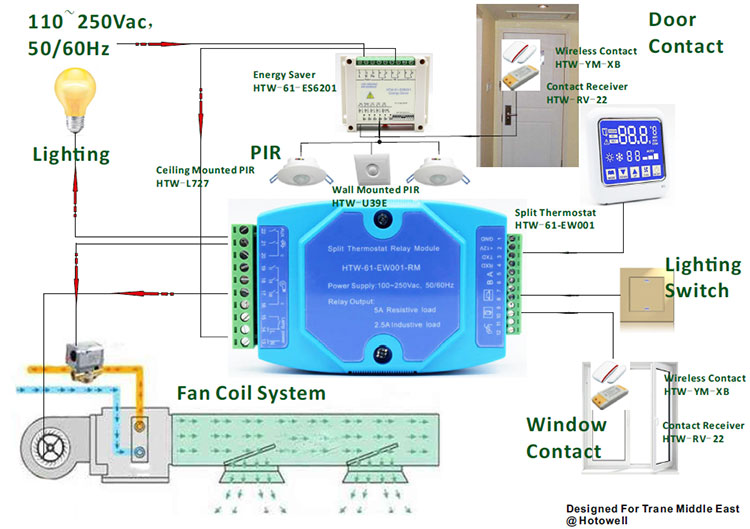

>> Application
