Heating/Cooling only Situation 2 Pipe System Modbus Communication Hotel Room Control Thermostat

 >> General

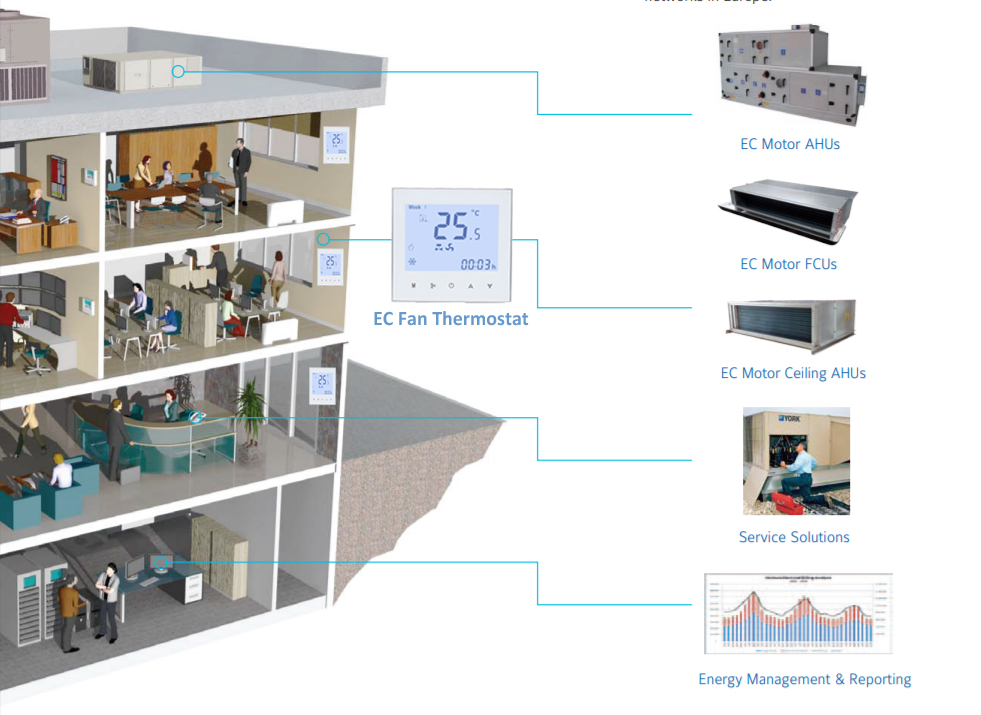

El termostato de ambiente FCU de la serie HTW-WF01-FC se usa ampliamente en sistemas de unidades Fan Coil que controlan ventiladores y válvulas de zona motorizadas de aire acondicionado central de calefacción/refrigeración. Incluye principalmente aplicaciones de sistemas de 2 y 4 tuberías. Hay opciones disponibles que incluyen Wifi, Modbus o tarjeta de acceso, sensor externo, etc.

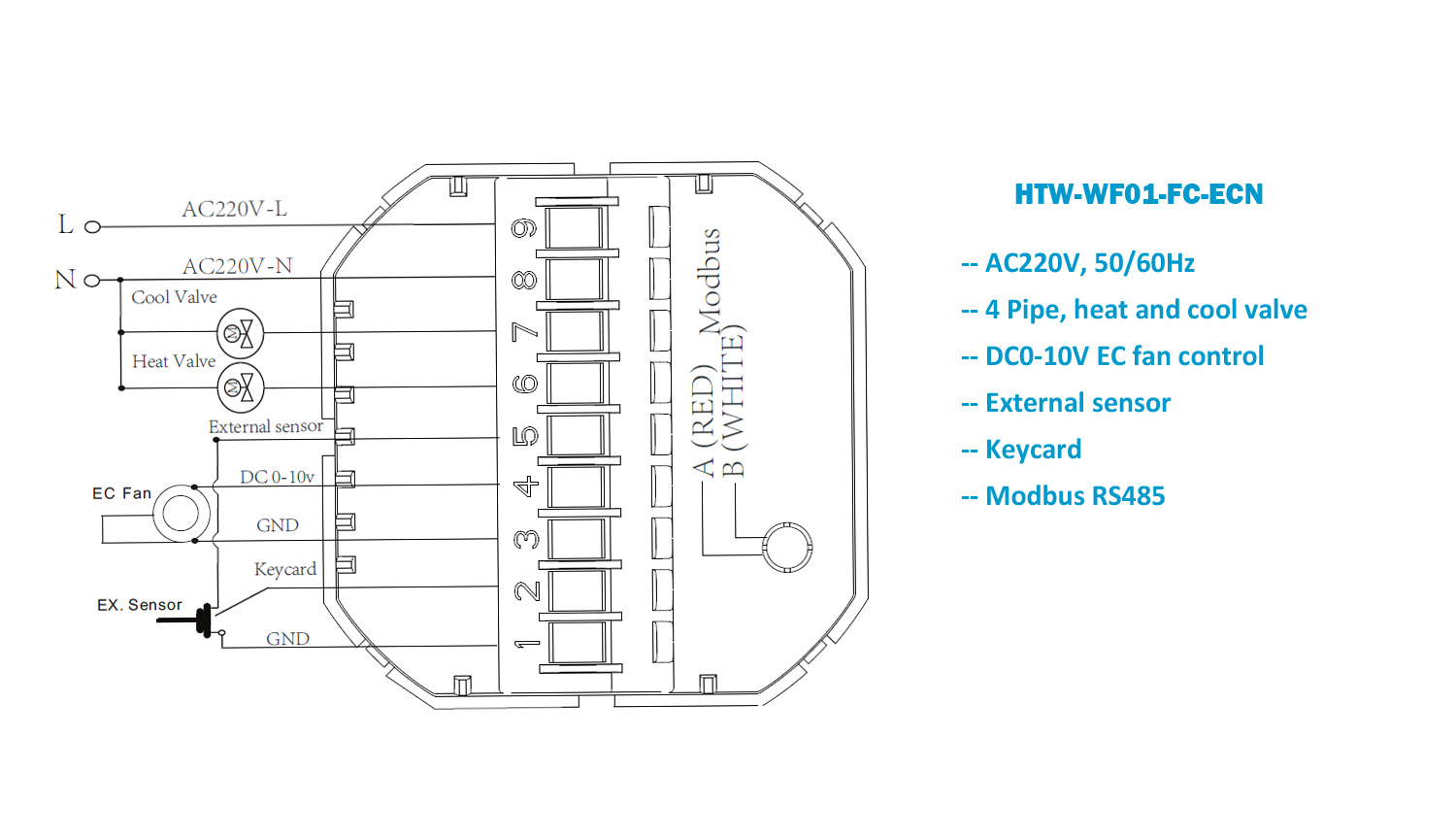

 >> Typical Wiring

 >> Specification

 >> Installation

n  Make sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can’t get the system to turn ON in 5 minutes, you’ll know the power is OFF.

n  Take off the installation faceplate by rotating and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.

n  Fix the installation plate onto the electric junction box with screws packed in the box.

n  Fasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)

 >> Display & Dimensions

 >> FAQ
