Sistema HVAC Termostato inteligente Termostato digital Termostato Fan Coil con comunicación Modbus

Identificación del producto : HTW-EW002

Etiquetas del producto : termostato ambiente termostato fan coil termostato inteligente

Atributos del producto :

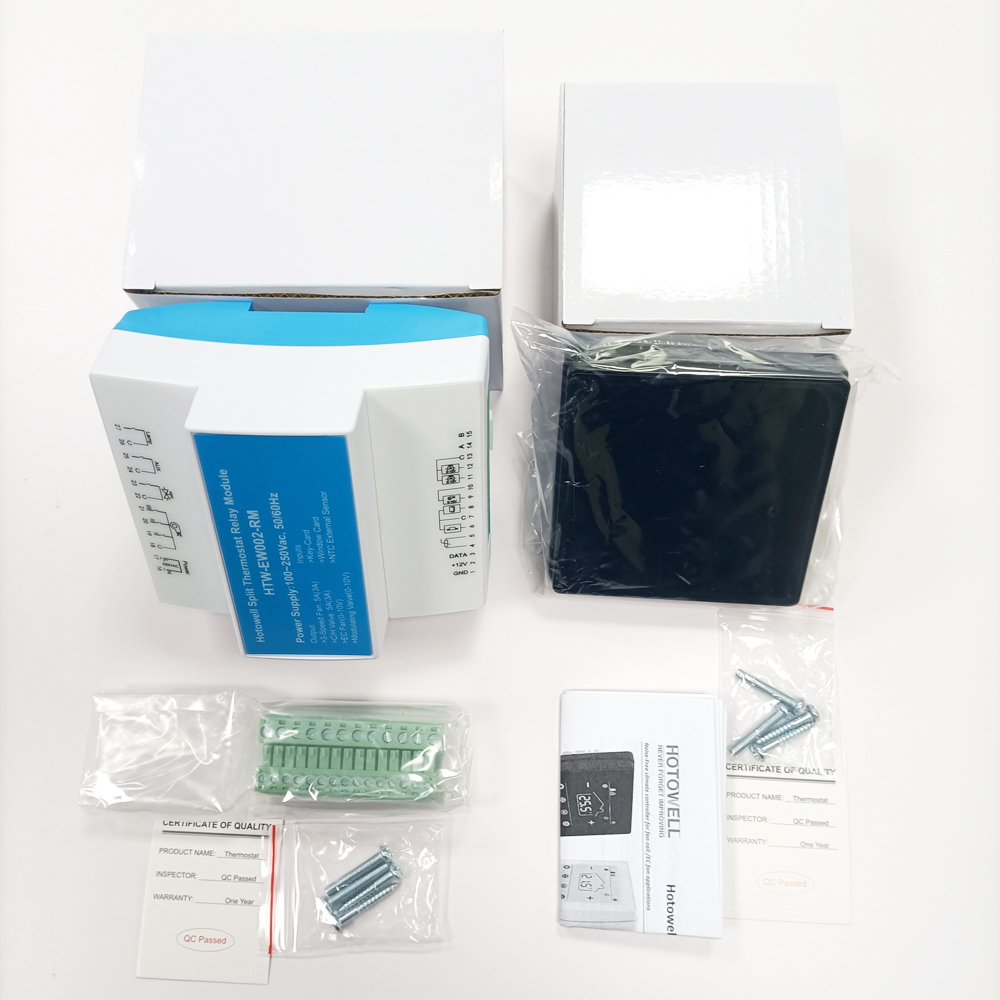

Este termostato consta de 2 partes:

HTW-EW002 panel de control dispalay parte

HTW-EW002-RM módulo de relé parte

Descripción del producto

Sistema HVAC Termostato inteligente Termostato digital Termostato Fan Coil con comunicación Modbus

>> General

Noise-Free Hotel Room FCU Lighting Touch Screen Split Controller Thermostat consta de 2 partes: HTW-EW002 panel de control dispalay parte HTW-EW002-RM módulo de relé parte Estas 2 partes están conectadas con cable de datos de 4 pines máx. hasta 30m, lo que hace posible instalar la parte del módulo de relé en un lugar remoto aparte de la habitación, para un propósito libre de ruido.

>> Specification

Power Supply	100~250Vac, 50/60Hz	Installation Box	EU or Standard Electric Box
Current Load	3 Speed Fan Relay 5A(3A-inductive)	Temperature Sensor	NTC, 3950 10K Ω at 25 ℃ (77ºF)
	1 Cool Valve Relay 5A(3A-inductive)	Operating Temp.	5ºC to +35ºC (41ºF to 95ºF)
	1 Aux./Heat Valve 5A(3A-inductive)	Storage Temp.	-20ºC to +85ºC (-4ºF to +185ºF)
	1 Lamp Relay 5A(3A-inductive)	Operating Humidity (no condensing)	10% to 90% RH to 50ºC
Power Consumption	< 2W	Storage Humidity (no condensing)	95% RH to 50ºC
Housing Material	PC +ABS ( Fireproof)	Temperature Accuracy	± 0.5 ° C or ± 1 ℉
Wires on Terminals	Wire 2 x 1.5 mm² or 1 x 2.5 mm²	Set-Point Range	5~35°C
Front Panel Size	83x83x16.5mm	Relay Module Size	110x91x67mm
Protection Class	IP20	Electrical Safety	Class III

>> Device Inputs and Outputs

Inputs	Outputs
1 Digital key-card switch	3 Relays, fan coil speed (I, II, III)
1 Digital window contact	1 Relay, chilled water valve
1 Analog ambient NTC temperature sensor(internal)	1 Auxiliary relay (hot water valve on 4 pipe systems/lighting on 2 pipe systems)
1 Analog external NTC temperature sensor	1 Auxiliary relay for lamp
	1 EC Fan DC 0-10V
	2 Modulating Valve DC 0/2-10V
