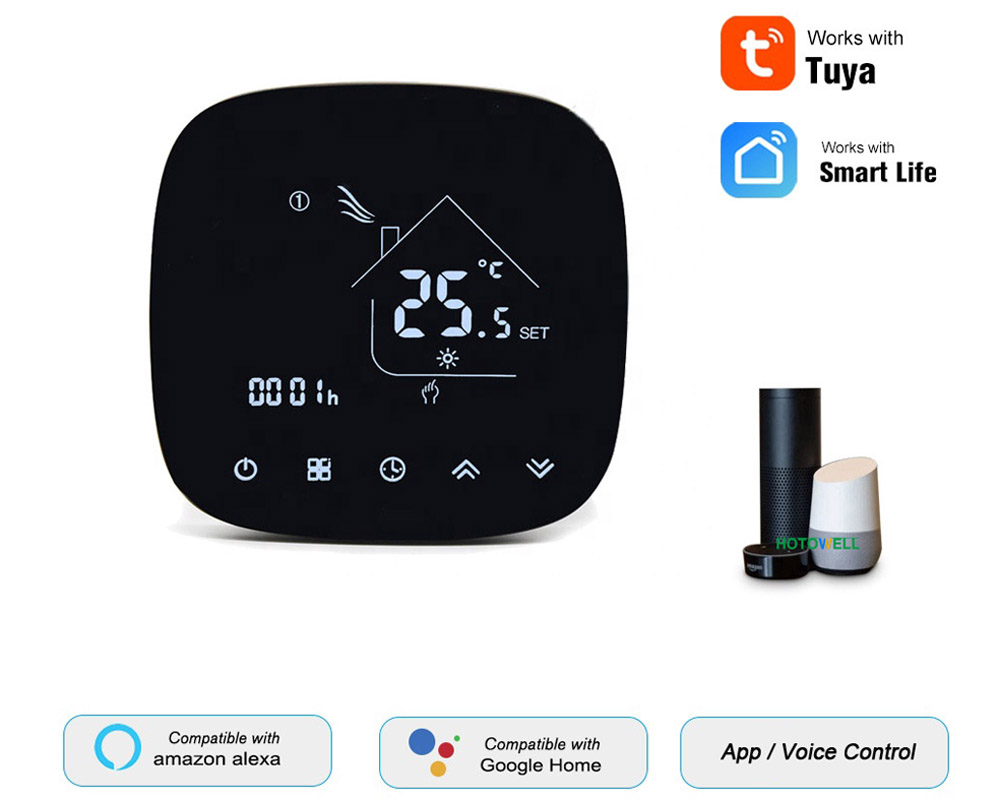

Controlador de Fan Coil Termostato Digital Termostato Tuya Botones Táctiles

Identificación del producto : HTW-EB-FC-2W/4W

Etiquetas del producto : Termostato Wifi termostato fan coil

Atributos del producto :

La serie HTW-EB-FC de termostatos inteligentes de fan coil se utiliza ampliamente para mantener una temperatura ambiente ideal.

Descripción del producto

Controlador de Fan Coil Termostato Digital Termostato Tuya Botones Táctiles

>> General

HTW-EB-FC-2W/4W
El termostato de fan coil inteligente de la serie HTW-EB-FC se utiliza ampliamente en entornos como hogares, edificios residenciales, escuelas, hoteles, hospitales, oficinas, etc. para mantener una temperatura ambiente ideal.

>> Ordering Guide

Please identify the specific thermostat according to your need or just contact us.
HTW-EB-FC-**	2	2 pipe(tube) system	W	Wi-Fi
	4	4 pipe(tube) system	P	Programmable
	M	Modulating output	E	External Sensor
	N	Modbus communication	24	Power Supply with 24Vac
e.g. HTW-EB-FC-4W refers to application: 4 pipe(tube) system, 3 fan speed, with Wi-Fi connection.

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
