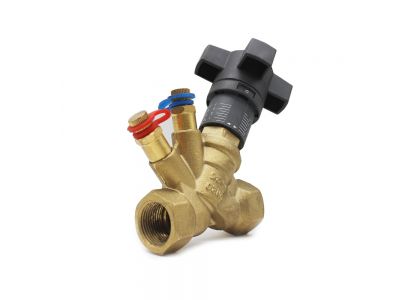

What is static balancing valve and how it works?

Static balancing valves also known as balancing valves,manual balancing valves, digital lock balancing valves. double-position regulating valves, are used to solve the problem of branch pressure differential balance in pipeline design.

The working principle of the static balance valve is to change the flow resistance through the valve by changing the clearance between the valve core and the seat in order to achieve the purpose of regulating the flow. It’s object of the action is the resistance of the system, which can distribute the new water according to the proportion calculated by the design. Each branch increases or decreases in proportion at the same time. and still satisfies the requirements. The flow demand of nutria load under pre-climate needs plays a role of heat balance.

Static balancing valve can be installed on a water supply pipe or the return pipe. Generally, it should be installed on the return pipe. Especially for high-temperature loop, in order to facilitate debugging, it should be installed on the return pipe. The supply (return) pipe with a balance valve does not need to install the stop valve.
