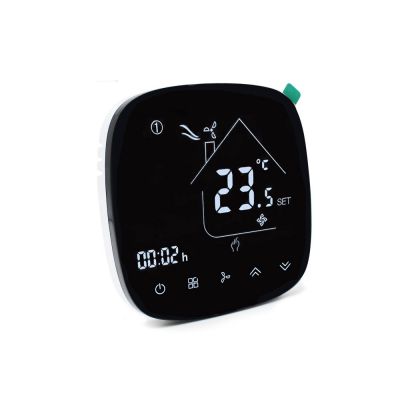

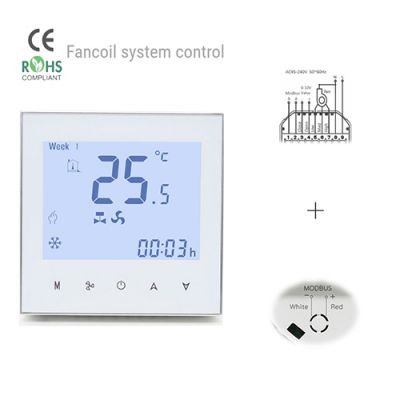

Wifi Fan Coil Unit Component Thermostat 3a 220v Fan-Coil Thermostat
HTW-FT03 series Smart Wifi fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
Wifi Fan Coil Unit Component Thermostat 3a 220v Fan-Coil Thermostat
>> General
HTW-FT03 series internet controlled thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
>> Feature
n 17 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian,Turkey, Hebrew, German, Italian, Japanese, French,Poland, simplified Chinese, traditional Chinese, Holland, Portuguese, Vietnamese, Arabic, Korean)
n Snap-In Easy Installation
n Fit for EU & Standard Junction Electric Box
n Easily Work with Amazon alexa, Google Assistant, IFTTT.
n Group Control in 1 App
n Fashion Sense of Science and Technology
>> Ordering Guide
|
HTW-FT03** |
-2 |
2 pipe(tube) system |
-W |
Window Card input |
|
Smart Wifi FanCoil Thermostat |
-4 |
4 pipe(tube) system |
-T |
Clock |
|
-M |
Modulating output |
-P |
Programmable |
|
|
-N |
Modbus RTU communication |
-E |
External Temperature Sensor |
|
|
-K |
Key Card occupancy input |
-24v |
Power Supply with 24Vac |
|
|
e.g. HTW-WF06-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable
|
||||
>> Tripical Wiring
>> Specification
>> Installation
n Make sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can’t get the system to turn ON in 5 minutes, you’ll know the power is OFF.
n Take off the installation faceplate by rotating and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
n Fix the installation plate onto the electric junction box with screws packed in the box.
n Fasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)
>> Dimensions and Display
