Smart Digital Heat Pump Programmable Single Stage Thermostat

>> General

1 Heat / 1 Cool single stage thermostat.
5+2 Programmable, Compatible with heat pump system
This thermostat is compatible with the following systems:
• Gas, oil, Propane or electric furnace
• Central air conditioner
• Geo Thermal / Hot water system with or without pump
• Millivolt system
• Central heating and cooling system
• Heat pump without auxiliary/backup heat
• Forced Air / In-Floor Radiant / Radiator system

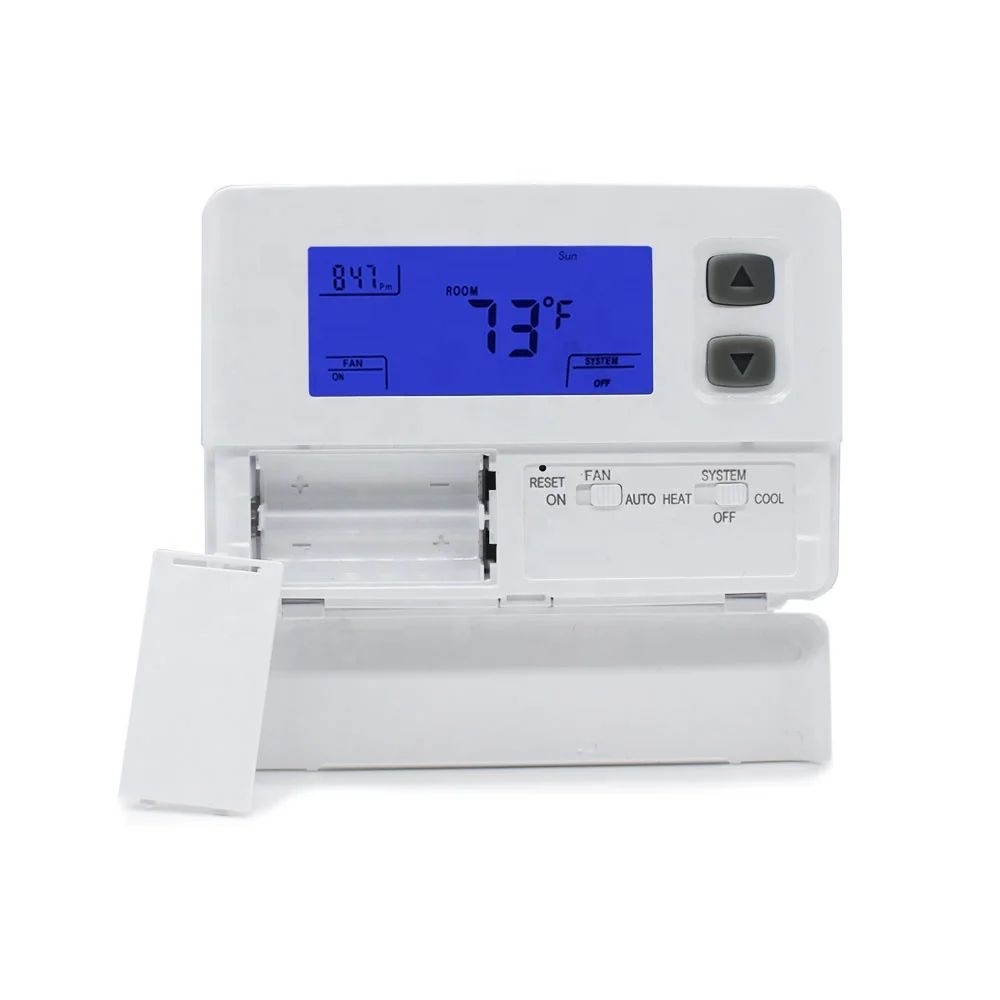

>> Products Images

• ºF or ºC configurable
• Child Lock Function
• Large LCD display, Backlight.
• Heat and Cool set point storage, 5+2 Programmable
• Display of room temperature, set temperature and current time simultaneously.
• Fan switch ON and AUTO.
• Permanent user setting retention during power loss. No batteries are required.
• Apply to 24VAC or 2 *AA alkaline batteries power supply.
• Air Filter change Indicator, Low Battery Indicator, Temperature calibration.
• 4- or 5-wire compatible (C is optional for non-heat pump systems)
• Manual Changeover / Fan Switch, Easy operation friendly.
• Mercury-Free, Environmentally Safe
• Built-in compressor protection, IC= Intelligence Energy Management Recovery (EMR) Function

>> Specification

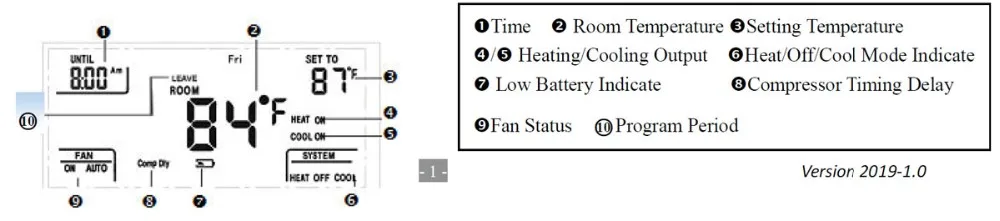

>> Display

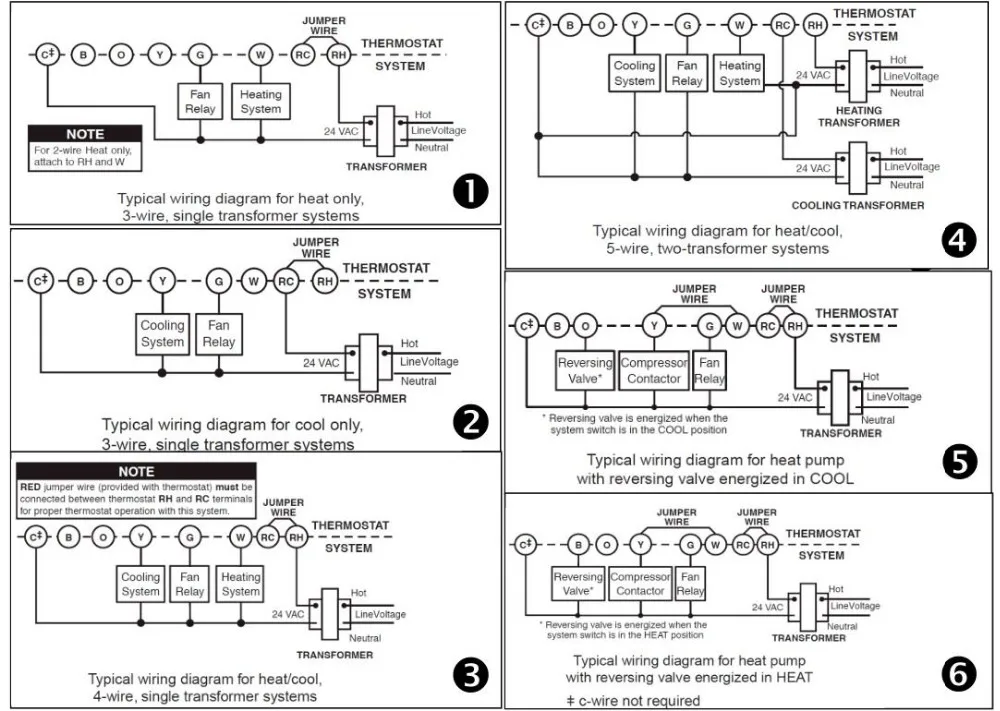

>> Typical Wiring Diagram

Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.

Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.

Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.

Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.

Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.

Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
