Product ID : HTW-WF06-FC-2/4
Product Attributes :

HTW-WF06-FC series smart fan coil thermostat is widely used to maintain an ideal room temperature.

Product Description
2 Pipe 4 Pipe FCU Thermostat Touch Keys Programmable Thermostat Heating Cooling

>> General

HTW-WF06-FC-2/4

HTW-WF06-FC series smart fan coil thermostat is widely used in environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices etc. to maintain an ideal room temperature.

>> Ordering Guide
HTW-WF**-FC-**
-2
2 pipe(tube) system
-W
Wi-Fi
Smart Fan Coil Thermostat
-4
4 pipe(tube) system
-B
BACnet
-M
Modulating output
-EC
EC Fan
-N
Modbus RTU communication
-E
External Temperature Sensor
-K
Key Card occupancy input
-24v
Power Supply with 24Vac
e.g. HTW-WF11-FC-MKB: refers to application: 1 modulating output, 3 fan speed, with Key-card and BACnet
>> Specification
Power Supply
95~240Vac, 50/60Hz
Sensor
NTC3950, 10K
Current Load
Fan Relay 5A (3A-inductive)
Temp. Accuracy
±0.5°C or ±1℉
Valve Relay 3A (1A-inductive)
Set-Point Range
5~35°C
Storage Temp.
-5 ~ 45 °C
Display Temp. Range
5~99°C
Power Consumption
< 1.5W
Timing Error
< 1%
Housing Material
PC +ABS (Fireproof)
Installation Box
EU or Standard Electric Box
Details

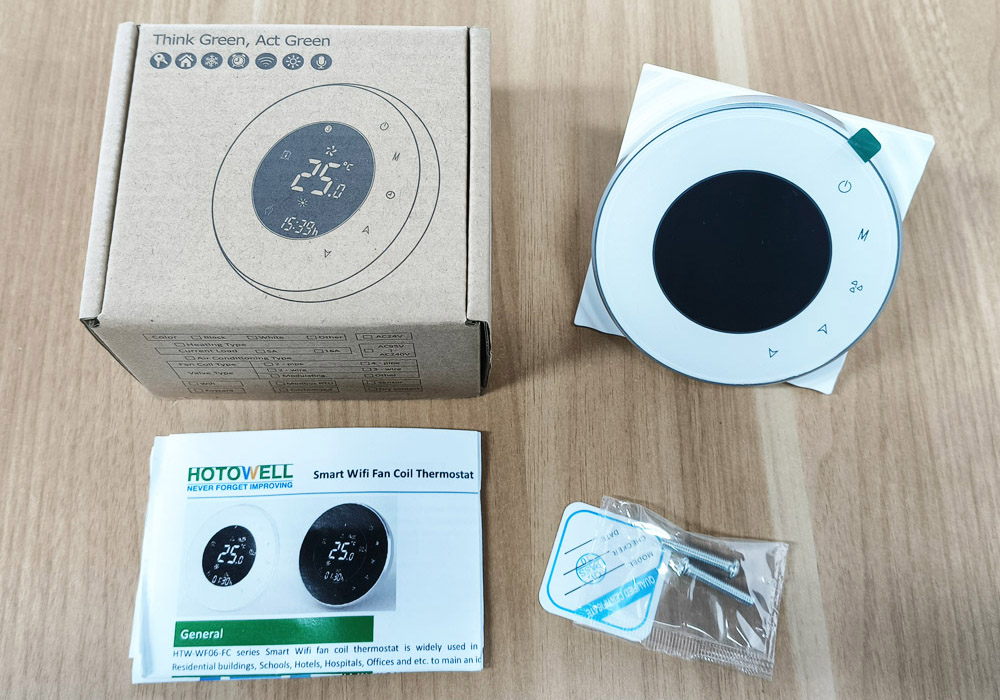

Packing & Shipping
