Digital Fan Coil Thermostat
Digital Fan Coil Thermostat-HTW-31-F12 series are used to control room temperature in commercial,industrial and residential environment via controlling fan coil units and motorized zone valves, motorized fan and valves of heating/cooling central air-condition and system thereof,and uses NTC to detect the room temperature and compares it with desired setpoint so as to maintain the correct temperature.
Digital Fan Coil Thermostat-HTW-31-F12.pdf
>> General
Digital Non-Programmable FCU Thermostat-HTW-31-F12 series are used to control room temperature in commercial,industrial and residential environment via controlling fan coil units and motorized zone valves, motorized fan and valves of heating/cooling central air-condition and system thereof,and uses NTC to detect the room temperature and compares it with desired setpoint so as to maintain the correct temperature.
>>Features
• Output： On/Off, Floating, 0(2)-10V, Dry Contact optional
• Backlight： White/Green optional
• Usage： FCU/HVAC System
• Sensor： Internal/External NTC optional
• Programmability： Non-programmable
• Network： Modbus, RS-485
• Mounting： Flush Mounting(Installation Distance-60mm)
• Other： Temp. offset, Key-card, IR optional
>>Technical parameters
•Load Current：3(1)A
•Consumption： <1.5W
•Temp. Setpoint Range：5~35℃
•Accurancy：±0.5℃
•Ambient Temp. Range： 0~50℃
•Housing： ABS to UL94-5 fire retardant plastic

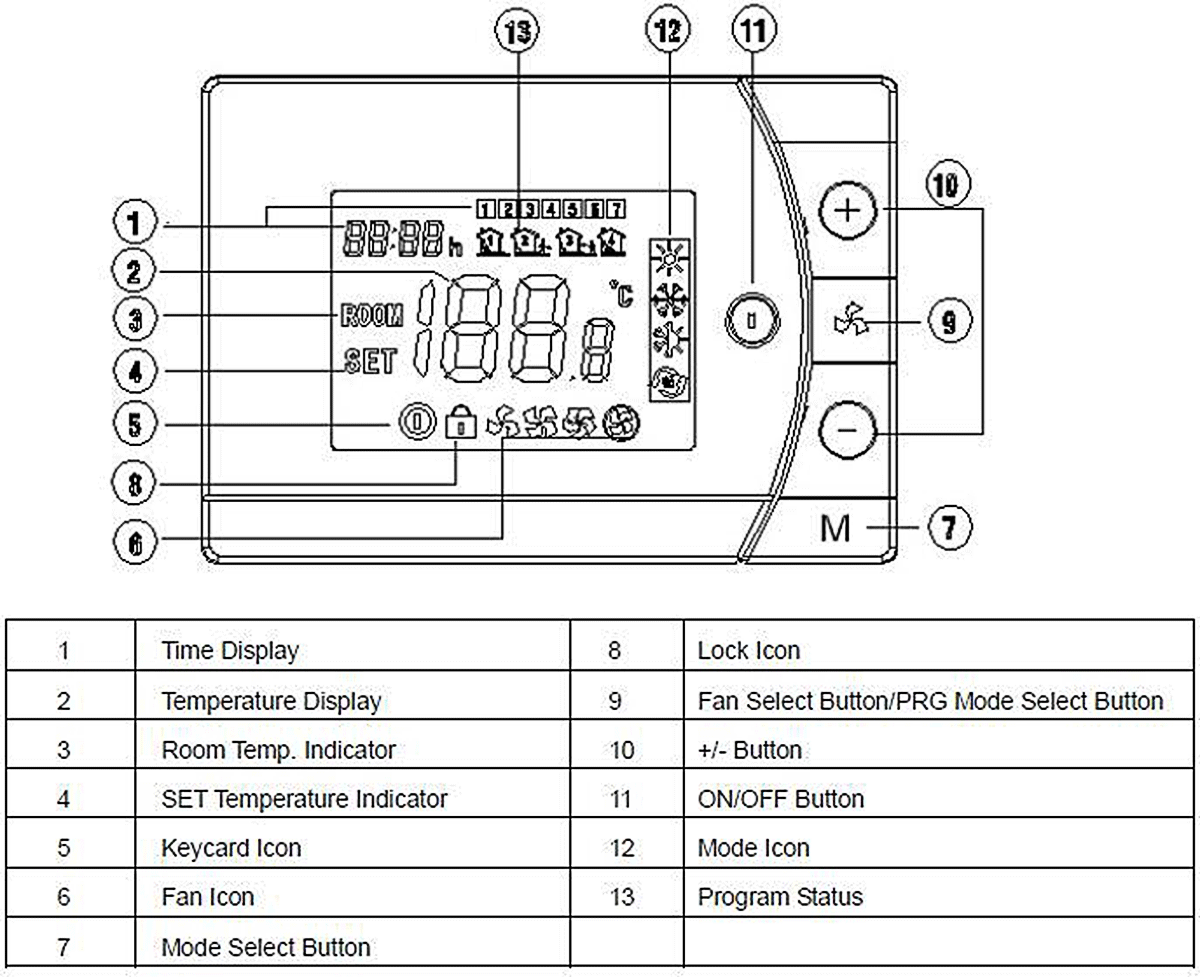

>>Display and Buttons
More Customized Application Available
