Product ID : HTW-61-HT-518
Product Attributes :

HTW-61-HT series Hygrostat + Thermostat uses microcomputer control technology, by detecting humidity/temperature to control fan/ electric valve/humidity equipment, so as to maintain a configurable set-point and humidity.

Product Description


HTW-61-HT series Hygrostat + Thermostat.pdf

 >> General

HTW-61-HT series Hygrostat + Thermostat uses microcomputer control technology, by detecting humidity/temperature to control fan/ electric valve/humidity equipment, so as to maintain a configurable set-point and humidity.

 >> Feature

lPower Supply:AC110/220/24V/Others optional

lSet-Point and Humidity Configurable

lControl Fan/Motorized valve/Humidifier/Dehumidifier equipment

l Power off memory function

lBlue backlight (Auto off without no operation after 10s)

l 8 time periods programmable.

lTemperature/Humidity display

lModbus-RS485 communication (optional)

 >> Technical Parameter

lPower supply: AC110/220/24V/Others optional

lSet-Point Range:5-35°C /5-90°C configurable.

lSelf-Consumption: <2 W

lHumidity Setting range:10-90%RH

lHumidity display range: 0-99%RH

lResolution: temperature  1°C , humidity  1%RH

lAccuracy:±1°C, Humidity ±5% RH

l Output Contact Capacity: AC220V/5A;

l Appearance size: 86* 86*15 mm,Installation hole distance: 60 mm

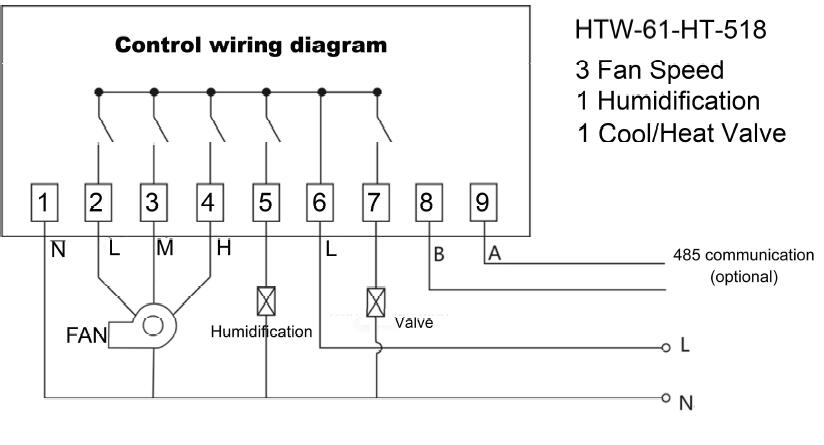

 >> Wiring Diagram
